## 개요[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

![이미지 1](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_OverViewPic.jpg)

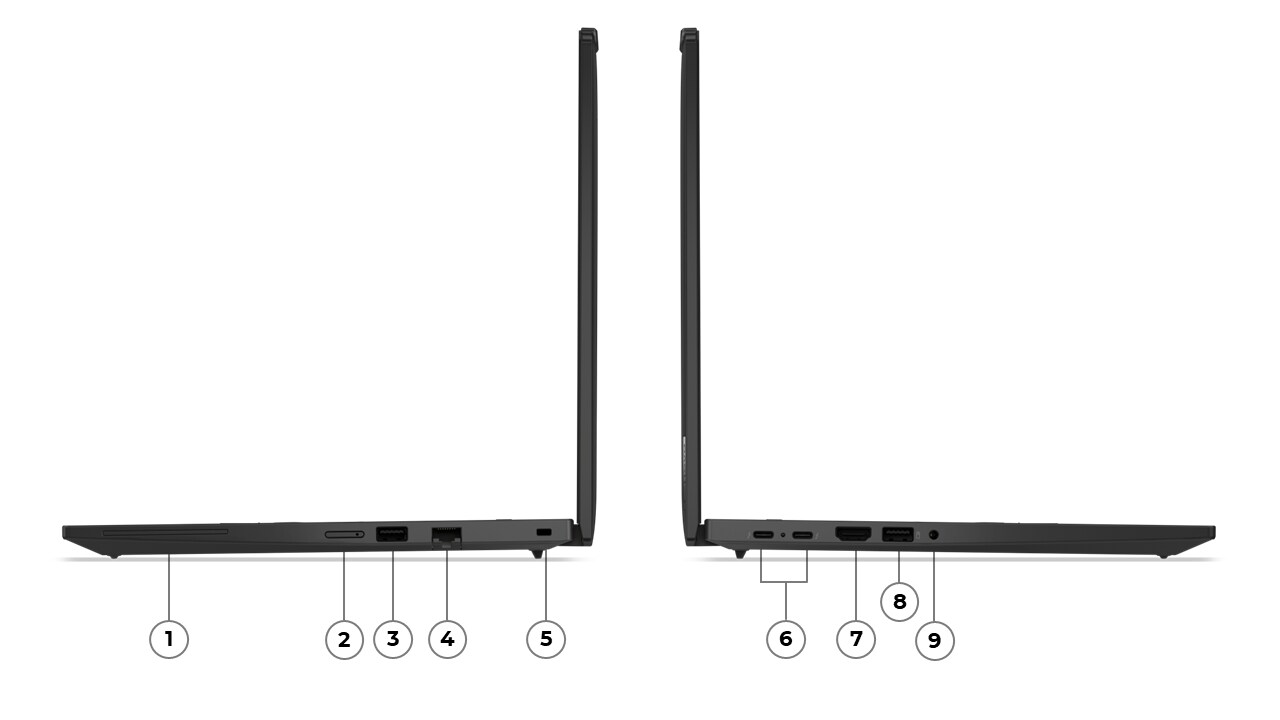

1.스마트 카드 리더기 *6.2x Thunderbolt 4
2.Nano-SIM 카드 슬롯 *7.HDMI
3.USB-A (USB 5Gbps)8.USB-A (USB 5Gbps), Always On
4.이더넷 (RJ-45)9.헤드폰 / 마이크 콤보 잭 (3.5mm)
5.Kensington Nano 보안 슬롯

참고:

* * 표시 항목은 일부 모델에서만 사용 가능

## 성능[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## 프로세서[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 프로세서 패밀리[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Intel® V, U 또는 H 시리즈 Core Ultra 5 / 7 프로세서 (시리즈 2)

### 프로세서**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

프로세서 이름 코어 스레드 기본 주파수 최대 주파수 캐시 프로세서 그래픽 NPU
Core Ultra 5 225H 14 (4 P-core + 8 E-core + 2 LPE-core)14 P-core 1.7GHz / E-core 1.3GHz / LPE-core 700MHz P-core 4.9GHz / E-core 4.3GHz / LPE-core 2.5GHz 18MB Intel® Arc™ 130T GPU, 최대 63 TOPS[1]Intel® AI Boost
Core Ultra 5 225U 12 (2 P-core + 8 E-core + 2 LPE-core)14 P-core 1.5GHz / E-core 1.3GHz / LPE-core 700MHz P-core 4.8GHz / E-core 3.8GHz / LPE-core 2.4GHz 12MB Intel® Graphics Intel® AI Boost
Core Ultra 5 228V 8 (4 P-core + 4 LPE-core)8 P-core 2.1GHz / LPE-core 2.1GHz P-core 4.5GHz / LPE-core 3.5GHz 8MB Intel® Arc™ Graphics 130V, 최대 53 TOPS Intel® AI Boost
Core Ultra 5 235H 14 (4 P-core + 8 E-core + 2 LPE-core)14 P-core 2.4GHz / E-core 1.8GHz / LPE-core 700MHz P-core 5.0GHz / E-core 4.4GHz / LPE-core 2.5GHz 18MB Intel® Arc™ 140T GPU, 최대 74 TOPS[2]Intel® AI Boost
Core Ultra 5 235U 12 (2 P-core + 8 E-core + 2 LPE-core)14 P-core 2.0GHz / E-core 1.6GHz / LPE-core 700MHz P-core 4.9GHz / E-core 4.1GHz / LPE-core 2.4GHz 12MB Intel® Graphics Intel® AI Boost
Core Ultra 5 238V 8 (4 P-core + 4 LPE-core)8 P-core 2.1GHz / LPE-core 2.1GHz P-core 4.7GHz / LPE-core 3.5GHz 8MB Intel® Arc™ Graphics 130V, 최대 53 TOPS Intel® AI Boost
Core Ultra 7 255H 16 (6 P-core + 8 E-core + 2 LPE-core)16 P-core 2GHz / E-core 1.5GHz / LPE-core 700MHz P-core 5.1GHz / E-core 4.4GHz / LPE-core 2.5GHz 24MB Intel® Arc™ 140T GPU, 최대 74 TOPS[3]Intel® AI Boost
Core Ultra 7 255U 12 (2 P-core + 8 E-core + 2 LPE-core)14 P-core 2GHz / E-core 1.7GHz / LPE-core 700MHz P-core 5.2GHz / E-core 4.2GHz / LPE-core 2.4GHz 12MB Intel® Graphics Intel® AI Boost
Core Ultra 7 258V 8 (4 P-core + 4 LPE-core)8 P-core 2.2GHz / LPE-core 2.2GHz P-core 4.8GHz / LPE-core 3.7GHz 12MB Intel® Arc™ Graphics 140V, 최대 64 TOPS Intel® AI Boost
Core Ultra 7 265H 16 (6 P-core + 8 E-core + 2 LPE-core)16 P-core 2.2GHz / E-core 1.7GHz / LPE-core 700MHz P-core 5.3GHz / E-core 4.5GHz / LPE-core 2.5GHz 24MB Intel® Arc™ 140T GPU, 최대 75 TOPS[4]Intel® AI Boost
Core Ultra 7 265U 12 (2 P-core + 8 E-core + 2 LPE-core)14 P-core 2.1GHz / E-core 1.7GHz / LPE-core 700MHz P-core 5.3GHz / E-core 4.2GHz / LPE-core 2.4GHz 12MB Intel® Graphics Intel® AI Boost
Core Ultra 7 268V 8 (4 P-core + 4 LPE-core)8 P-core 2.2GHz / LPE-core 2.2GHz P-core 5GHz / LPE-core 3.7GHz 12MB Intel® Arc™ Graphics 140V, 최대 66 TOPS Intel® AI Boost

* * *

참고:

[1], [2], [3], [4]Intel® Arc™ 그래픽은 최소 16GB 시스템 메모리를 듀얼 채널 구성으로 갖춘 일부 H 시리즈 Intel® Core™ Ultra 프로세서 기반 시스템에서만 사용 가능하며, 그렇지 않으면 Intel® Graphics로 작동합니다.

## AI (인공지능)[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### AI PC 범주**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* AI PC (U 또는 H 시리즈 프로세서 모델)[1]
* Copilot+ PC (V 시리즈 프로세서 모델)[2]

### AI 성능[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

최대 118 전체 TOPS

### NPU[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

통합 Intel® AI Boost, 최대 48 TOPS

* * *

참고:

[1]AI PC는 선택적 Microsoft® Copilot 키를 누르거나 Win + C를 사용하여 Copilot 어시스턴트를 실행할 수 있는 10+ TOPs의 NPU를 갖습니다.
[2]Copilot+ PC는 최소 16GB RAM, 256GB 저장장치, 40+ TOPs를 실행하는 NPU를 갖추어 최신 Windows® 11에 내장된 최신 AI 도구를 실행하여 생산성과 창의성을 가속화합니다.

## 운영 체제[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 운영 체제**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Windows® 11 Pro
* Windows® 11 Home
* Windows® 11 Home Single Language
* Fedora Linux[1]
* Ubuntu Linux[2]
* Linux[3]
* 운영 체제 사전 설치 없음

* * *

참고:

[1], [2], [3]Linux 사전 설치 시스템에서는 Intel® RST RAID, MIPI 컴퓨터 비전 카메라, WWAN, Human Presence Detection 등을 포함하되 이에 국한되지 않는 일부 기능이 지원되지 않을 수 있습니다.

## 그래픽[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 그래픽**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

그래픽 유형 메모리 TGP 주요 기능
Intel® Arc™ 130T GPU[1]통합 공유 CPU TDP 공유 DirectX® 12.2
Intel® Arc™ 140T GPU[2]통합 공유 CPU TDP 공유 DirectX® 12.2
Intel® Arc™ Graphics 130V 통합 공유 CPU TDP 공유 DirectX® 12.2
Intel® Arc™ Graphics 140V 통합 공유 CPU TDP 공유 DirectX® 12.2
Intel® Graphics 통합 공유 CPU TDP 공유 DirectX® 12.2

* * *

참고:

[1], [2]Intel® Arc™ 그래픽은 최소 16GB 시스템 메모리를 듀얼 채널 구성으로 갖춘 일부 H 시리즈 Intel® Core™ Ultra 프로세서 기반 시스템에서만 사용 가능하며, 그렇지 않으면 Intel® Graphics로 작동합니다.

## 모니터 지원[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 모니터 지원[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

U 또는 H 시리즈 프로세서 모델: 최대 4개의 독립 디스플레이 지원 (기본 디스플레이 및 HDMI®와 Thunderbolt™를 통한 3개의 외부 모니터) V 시리즈 프로세서 모델: 최대 3개의 독립 디스플레이 지원 (기본 디스플레이 및 HDMI®와 Thunderbolt™를 통한 2개의 외부 모니터) • HDMI®는 최대 4K@60Hz 지원 • Thunderbolt™는 최대 8K@60Hz 지원[2]

* * *

참고:

[1]60Hz 초과 재생률도 지원되지만 최대 해상도는 제한됩니다.
[2]8K 해상도 지원에는 2개의 디스플레이 파이프가 필요합니다. 즉, 8K 해상도 표시 시 동시 디스플레이 수가 "-1"이 됩니다.

## 칩셋[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 칩셋[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Intel® SoC (System on Chip) 플랫폼

## 메모리[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 최대 메모리[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* V 시리즈 프로세서 모델: 32GB 솔더링 메모리, 업그레이드 불가
* U 또는 H 시리즈 프로세서 모델: 최대 64GB DDR5-6400

### 메모리 슬롯**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* V 시리즈 프로세서 모델: 메모리가 시스템보드에 솔더링됨, 슬롯 없음, 듀얼 채널
* U 또는 H 시리즈 프로세서 모델: 두 개의 DDR5 SODIMM / CSODIMM 슬롯, 듀얼 채널 가능

### 메모리 유형**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* U 또는 H 시리즈 프로세서 모델: DDR5-5600 또는 DDR5-6400
* V 시리즈 프로세서 모델: LPDDR5x-8533, MoP (Memory on Package) 메모리

## 저장장치[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 저장장치 지원[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

드라이브 1개, 최대 2TB M.2 2280 SSD

### 저장장치 슬롯[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* U 시리즈 프로세서 모델: M.2 2280 PCIe® 4.0 x4 슬롯 1개
* V 또는 H 시리즈 프로세서 모델: M.2 2280 PCIe® 5.0 x4 슬롯 1개

### 저장장치 유형**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

디스크 유형 인터페이스 제공 보안
M.2 2280 SSD PCIe® NVMe®, PCIe® 4.0 x4 256GB / 512GB / 1TB Opal 2.0
M.2 2280 SSD PCIe® NVMe®, PCIe® 4.0 x4 Performance 512GB Opal 2.0
M.2 2280 SSD PCIe® NVMe®, PCIe® 5.0 x4 Performance 512GB / 1TB / 2TB Opal 2.0

* * *

참고:

[1]지원되는 저장 용량은 현재 Lenovo® 저장장치 제품과의 테스트 결과를 기반으로 합니다.

## 이동식 저장장치[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 카드 리더기[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

카드 리더기 없음

## 멀티미디어[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 오디오 칩[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

고음질 (HD) 오디오, Realtek® ALC3287 코덱

### 스피커[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

스테레오 스피커, 2W x2, Dolby Audio™

### 마이크[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 듀얼 마이크 어레이, 360° 원거리, Dolby Voice®
* 마이크 없음[1]

### 카메라**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 5.0MP + IR 개별, 프라이버시 셔터 포함, 고정 초점, 시간적 노이즈 감소
* 5.0MP, 프라이버시 셔터 포함, 고정 초점, 시간적 노이즈 감소
* 카메라 없음[2]

* * *

참고:

[1]마이크 없음은 특별 입찰 전용입니다.
[2]카메라 없음은 특별 입찰 전용입니다.

## 배터리[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 배터리**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 52.5Wh 충전식 리튬이온 배터리, 급속 충전 지원 (1시간 내 최대 80% 충전)
* 57Wh 충전식 리튬이온 배터리, 급속 충전 지원 (1시간 내 최대 80% 충전)

### 배터리 수명[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

구성 1 (최대 배터리 수명) MobileMark® 25: 821 성능 점수로 최대 18.76시간 @250nits JEITA-BAT 3.0 (비디오/유휴): 최대 11.2시간 / 33.8시간 @200nits 로컬 비디오 재생: 최대 30시간 @150nits 대체 구성 2 MobileMark® 25: 511 성능 점수로 최대 12.9시간 @250nits JEITA-BAT 3.0 (비디오/유휴): 최대 11.9시간 / 26.4시간 @200nits 로컬 비디오 재생: 최대 20.82시간 @150nits 대체 구성 3 MobileMark® 25: 696 성능 점수로 최대 12.3시간 @250nits JEITA-BAT 3.0 (비디오/유휴): 최대 11.45시간 / 28.7시간 @200nits 로컬 비디오 재생: 최대 20.2시간 @150nits

* * *

참고:

[1]구성 1 (최대 배터리 수명): WUXGA 저전력 (비터치), Intel® Core™ Ultra 5 228V, 32GB LPDDR5x-8533, Win 11, 57Wh 배터리, 최고 전력 효율 전원 모드 대체 구성 2: WUXGA 저전력 (비터치), Intel® Core™ Ultra 5 225U, 8GB DDR5, Win 11, 52.5Wh 배터리, 최고 전력 효율 전원 모드 대체 구성 3: WUXGA 저전력 (비터치), Intel® Core™ Ultra 5 225H, 8GB DDR5, Win 11, 52.5Wh 배터리, 최고 전력 효율 전원 모드 모든 배터리 수명 주장은 대략적인 최대치이며 [MobileMark® 25](https://bapco.com/products/mobilemark-25), JEITA 3.0, 연속 1080p 로컬 비디오 재생 (기본 미디어 플레이어를 전체 화면 모드로 150nits 밝기 및 기본 볼륨 수준에서 사용), 또는 Google Power Load Test (PLT) 배터리 수명 벤치마크 테스트 결과를 기반으로 합니다. 실제 배터리 수명은 제품 구성, 소프트웨어, 무선 기능, 전원 관리 설정, 화면 밝기 등 여러 요인에 따라 달라집니다. 배터리의 최대 용량은 시간, 주변 온도 및 사용에 따라 감소합니다. Windows® 성능 전원 슬라이더에 대한 자세한 내용은 [Microsoft® 링크](https://support.microsoft.com/en-au/windows/change-the-power-mode-for-your-windows-pc-c2aff038-22c9-f46d-5ca0-78696fdf2de8)를 참조하십시오.

## 전원 어댑터[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 전원 어댑터**[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 65W USB-C® (2핀) AC 어댑터, PD 3.0 지원, 100-240V, 50-60Hz
* 65W USB-C® (3핀) AC 어댑터, PD 3.0 지원, 100-240V, 50-60Hz
* 65W USB-C® 나노 GaN (2핀, 벽면 장착) AC 어댑터, PD 3.0 지원, 100-240V, 50-60Hz
* 65W USB-C® 나노 GaN (3핀, 벽면 장착) AC 어댑터, PD 3.0 지원, 100-240V, 50-60Hz
* 65W USB-C® 슬림 GaN (2핀) AC 어댑터, PD 3.0 지원, 100-240V, 50-60Hz
* 65W USB-C® 슬림 GaN (3핀) AC 어댑터, PD 3.0 지원, 100-240V, 50-60Hz
* 전원 어댑터 없음[2]

* * *

참고:

[1]AC 어댑터 제공은 국가에 따라 다릅니다.
[2]전원 어댑터 없음은 특별 입찰 전용입니다.

## 디자인[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## 디스플레이[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### 디스플레이**[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

크기 해상도 터치 유형 밝기 표면 화면 비율 명암비 색 영역 재생률 시야각 (좌/우/상/하)주요 기능
14"WUXGA (1920x1200)없음 IPS[2]400nits 안티글레어 16:10 1000:1 45% NTSC 60Hz 89° / 89° / 89° / 89°85.73% 화면 대 본체 비율, 3M™ DBEF5
14"WUXGA (1920x1200)온셀 터치 IPS[3]400nits 안티글레어 16:10 1000:1 45% NTSC 60Hz 89° / 89° / 89° / 89°Eyesafe® Certified 2.0, 85.73% 화면 대 본체 비율, 3M™ DBEF5
14"WUXGA (1920x1200)없음 IPS[4]500nits 안티글레어 16:10 1000:1 100% sRGB 60Hz 85° / 85° / 85° / 85°저전력, Eyesafe® Certified 2.0, 85.73% 화면 대 본체 비율
14"WUXGA (1920x1200)온셀 터치 IPS[5]500nits 안티글레어 16:10 1500:1 100% sRGB 60Hz 89° / 89° / 89° / 89°ThinkPad® Privacy Guard, 85.73% 화면 대 본체 비율
14"2.8K (2880x1800)[6]애드온 필름 터치 OLED 500nits 안티글레어, 안티리플렉션, 안티스머지 16:10 100,000:1 100% DCI-P3 120Hz VRR 85° / 85° / 85° / 85°DisplayHDR™ True Black 500, Dolby Vision®, Eyesafe® Certified 2.0, 85.73% 화면 대 본체 비율

### 터치스크린**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 애드온 필름 터치, 10포인트 터치 지원
* 온셀 멀티터치, 10포인트 터치 지원
*

본문이 길어 30696자 중 16000자만 처리했습니다.

브리프용 요약 초안
Lenovo ThinkPad T14 Gen 6 Intel은 V 시리즈에 32GB LPDDR5x-8533 MoP를, U/H 시리즈에 최대 64GB DDR5-6400 SODIMM을 제공한다. 이는 PC DRAM과 모바일 LPDDR 수요에 영향을 줄 수 있으나, 실제 출하량과 공급 계약은 공식 확인되지 않았다.

원문 텍스트

원문 열기 ↗
v1 · 10.10 10:26
Title: Document

URL Source: https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html

Markdown Content:
## Overview[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

![Image 1](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_OverViewPic.jpg)

1.Smart card reader *6.2x Thunderbolt 4
2.Nano-SIM card slot *7.HDMI
3.USB-A (USB 5Gbps)8.USB-A (USB 5Gbps), Always On
4.Ethernet (RJ-45)9.Headphone / microphone combo jack (3.5mm)
5.Kensington Nano Security Slot

Notes:

* Items with * are only available on selected models

## Performance[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Processor[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Processor Family[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Intel® V, U or H Series Core Ultra 5 / 7 Processor (Series 2)

### Processor**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Processor Name Cores Threads Base Frequency Max Frequency Cache Processor Graphics NPU
Core Ultra 5 225H 14 (4 P-core + 8 E-core + 2 LPE-core)14 P-core 1.7GHz / E-core 1.3GHz / LPE-core 700MHz P-core 4.9GHz / E-core 4.3GHz / LPE-core 2.5GHz 18MB Intel® Arc™ 130T GPU, up to 63 TOPS[1]Intel® AI Boost
Core Ultra 5 225U 12 (2 P-core + 8 E-core + 2 LPE-core)14 P-core 1.5GHz / E-core 1.3GHz / LPE-core 700MHz P-core 4.8GHz / E-core 3.8GHz / LPE-core 2.4GHz 12MB Intel® Graphics Intel® AI Boost
Core Ultra 5 228V 8 (4 P-core + 4 LPE-core)8 P-core 2.1GHz / LPE-core 2.1GHz P-core 4.5GHz / LPE-core 3.5GHz 8MB Intel® Arc™ Graphics 130V, up to 53 TOPS Intel® AI Boost
Core Ultra 5 235H 14 (4 P-core + 8 E-core + 2 LPE-core)14 P-core 2.4GHz / E-core 1.8GHz / LPE-core 700MHz P-core 5.0GHz / E-core 4.4GHz / LPE-core 2.5GHz 18MB Intel® Arc™ 140T GPU, up to 74 TOPS[2]Intel® AI Boost
Core Ultra 5 235U 12 (2 P-core + 8 E-core + 2 LPE-core)14 P-core 2.0GHz / E-core 1.6GHz / LPE-core 700MHz P-core 4.9GHz / E-core 4.1GHz / LPE-core 2.4GHz 12MB Intel® Graphics Intel® AI Boost
Core Ultra 5 238V 8 (4 P-core + 4 LPE-core)8 P-core 2.1GHz / LPE-core 2.1GHz P-core 4.7GHz / LPE-core 3.5GHz 8MB Intel® Arc™ Graphics 130V, up to 53 TOPS Intel® AI Boost
Core Ultra 7 255H 16 (6 P-core + 8 E-core + 2 LPE-core)16 P-core 2GHz / E-core 1.5GHz / LPE-core 700MHz P-core 5.1GHz / E-core 4.4GHz / LPE-core 2.5GHz 24MB Intel® Arc™ 140T GPU, up to 74 TOPS[3]Intel® AI Boost
Core Ultra 7 255U 12 (2 P-core + 8 E-core + 2 LPE-core)14 P-core 2GHz / E-core 1.7GHz / LPE-core 700MHz P-core 5.2GHz / E-core 4.2GHz / LPE-core 2.4GHz 12MB Intel® Graphics Intel® AI Boost
Core Ultra 7 258V 8 (4 P-core + 4 LPE-core)8 P-core 2.2GHz / LPE-core 2.2GHz P-core 4.8GHz / LPE-core 3.7GHz 12MB Intel® Arc™ Graphics 140V, up to 64 TOPS Intel® AI Boost
Core Ultra 7 265H 16 (6 P-core + 8 E-core + 2 LPE-core)16 P-core 2.2GHz / E-core 1.7GHz / LPE-core 700MHz P-core 5.3GHz / E-core 4.5GHz / LPE-core 2.5GHz 24MB Intel® Arc™ 140T GPU, up to 75 TOPS[4]Intel® AI Boost
Core Ultra 7 265U 12 (2 P-core + 8 E-core + 2 LPE-core)14 P-core 2.1GHz / E-core 1.7GHz / LPE-core 700MHz P-core 5.3GHz / E-core 4.2GHz / LPE-core 2.4GHz 12MB Intel® Graphics Intel® AI Boost
Core Ultra 7 268V 8 (4 P-core + 4 LPE-core)8 P-core 2.2GHz / LPE-core 2.2GHz P-core 5GHz / LPE-core 3.7GHz 12MB Intel® Arc™ Graphics 140V, up to 66 TOPS Intel® AI Boost

* * *

Notes:

[1], [2], [3], [4]Intel® Arc™ graphics only available on select H-series Intel® Core™ Ultra processor powered systems with at least 16GB of system memory in a dual-channel configurations, otherwise it will function as Intel® Graphics.

## AI (Artificial Intelligence)[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### AI PC Category**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* AI PC (models with U or H series processor)[1]
* Copilot+ PC (models with V series processor)[2]

### AI Performance[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Up to 118 overall TOPS

### NPU[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Integrated Intel® AI Boost, up to 48 TOPS

* * *

Notes:

[1]AI PCs have a NPU capable of 10+ TOPs to run the Copilot assistant by pressing the optional Microsoft® Copilot key or using Win + C.
[2]Copilot+ PCs have at least 16GB RAM, 256GB storage, and a NPU that runs 40+ TOPs to run the latest AI tools build-in latest Windows® 11 to accelerate productivity and creativity.

## Operating System[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Operating System**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Windows® 11 Pro
* Windows® 11 Home
* Windows® 11 Home Single Language
* Fedora Linux[1]
* Ubuntu Linux[2]
* Linux[3]
* No preload operating system

* * *

Notes:

[1], [2], [3]Some features may not be supported on the system with Linux preload, including but not limited to Intel® RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.

## Graphics[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Graphics**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Graphics Type Memory TGP Key Features
Intel® Arc™ 130T GPU[1]Integrated Shared Share CPU TDP DirectX® 12.2
Intel® Arc™ 140T GPU[2]Integrated Shared Share CPU TDP DirectX® 12.2
Intel® Arc™ Graphics 130V Integrated Shared Share CPU TDP DirectX® 12.2
Intel® Arc™ Graphics 140V Integrated Shared Share CPU TDP DirectX® 12.2
Intel® Graphics Integrated Shared Share CPU TDP DirectX® 12.2

* * *

Notes:

[1], [2]Intel® Arc™ graphics only available on select H-series Intel® Core™ Ultra processor powered systems with at least 16GB of system memory in a dual-channel configurations, otherwise it will function as Intel® Graphics.

## Monitor Support[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Monitor Support[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Models with U or H series processor: supports up to 4 independent displays (native display and 3 external monitors via HDMI® and Thunderbolt™) Models with V series processor: supports up to 3 independent displays (native display and 2 external monitors via HDMI® and Thunderbolt™) • HDMI® supports up to 4K@60Hz • Thunderbolt™ supports up to 8K@60Hz[2]

* * *

Notes:

[1]Refresh rates >60hz also supported, however max resolution will be limited.
[2]8K resolution support needs 2 display pipes. That is, simultaneous display number will “-1” when 8K resolution displayed.

## Chipset[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Chipset[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Intel® SoC (System on Chip) platform

## Memory[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Max Memory[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Models with V series processor: 32GB soldered memory, not upgradable
* Models with U or H series processor: up to 64GB DDR5-6400

### Memory Slots**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Models with V series processor: memory soldered to systemboard, no slots, dual-channel
* Models with U or H series processor: two DDR5 SODIMM / CSODIMM slots, dual-channel capable

### Memory Type**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Models with U or H series processor: DDR5-5600 or DDR5-6400
* Models with V series processor: LPDDR5x-8533, MoP (Memory on Package) memory

## Storage[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Storage Support[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

One drive, up to 2TB M.2 2280 SSD

### Storage Slot[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Models with U series processor: one M.2 2280 PCIe® 4.0 x4 slot
* Models with V or H series processor: one M.2 2280 PCIe® 5.0 x4 slot

### Storage Type**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Disk Type Interface Offering Security
M.2 2280 SSD PCIe® NVMe®, PCIe® 4.0 x4 256GB / 512GB / 1TB Opal 2.0
M.2 2280 SSD PCIe® NVMe®, PCIe® 4.0 x4 Performance 512GB Opal 2.0
M.2 2280 SSD PCIe® NVMe®, PCIe® 5.0 x4 Performance 512GB / 1TB / 2TB Opal 2.0

* * *

Notes:

[1]The storage capacity supported is based on the test results with current Lenovo® storage offerings.

## Removable Storage[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Card Reader[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

No card reader

## Multi-Media[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Audio Chip[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

High Definition (HD) Audio, Realtek® ALC3287 codec

### Speakers[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Stereo speakers, 2W x2, Dolby Audio™

### Microphone[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Dual-microphone array, 360° far-field, Dolby Voice®
* No microphone[1]

### Camera**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 5.0MP + IR discrete, with privacy shutter, fixed focus, temporal noise reduction
* 5.0MP, with privacy shutter, fixed focus, temporal noise reduction
* No camera[2]

* * *

Notes:

[1]No microphone is for special bid only.
[2]No camera is for special bid only.

## Battery[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Battery**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 52.5Wh Rechargeable Li-ion Battery, supports Rapid Charge (charge up to 80% in 1hr)
* 57Wh Rechargeable Li-ion Battery, supports Rapid Charge (charge up to 80% in 1hr)

### Battery Life[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Configuration 1 (max battery life) MobileMark® 25: up to 18.76 hr with 821 performance score @250nits JEITA-BAT 3.0 (Video/Idle): up to 11.2 hr / 33.8 hr @200nits Local video playback: up to 30 hr @150nits Alternate configuration 2 MobileMark® 25: up to 12.9 hr with 511 performance score @250nits JEITA-BAT 3.0 (Video/Idle): up to 11.9 hr / 26.4 hr @200nits Local video playback: up to 20.82 hr @150nits Alternate configuration 3 MobileMark® 25: up to 12.3 hr with 696 performance score @250nits JEITA-BAT 3.0 (Video/Idle): up to 11.45 hr / 28.7 hr @200nits Local video playback: up to 20.2 hr @150nits

* * *

Notes:

[1]Configuration 1 (max battery life): WUXGA low power (non-touch), Intel® Core™ Ultra 5 228V, 32GB LPDDR5x-8533, Win 11, 57Wh battery, best power efficiency power mode Alternate configuration 2: WUXGA low power (non-touch), Intel® Core™ Ultra 5 225U, 8GB DDR5, Win 11, 52.5Wh battery, best power efficiency power mode Alternate configuration 3: WUXGA low power (non-touch), Intel® Core™ Ultra 5 225H, 8GB DDR5, Win 11, 52.5Wh battery, best power efficiency power mode All battery life claims are approximate maximum and based on results using [MobileMark® 25](https://bapco.com/products/mobilemark-25), JEITA 3.0, continuous 1080p local video playback (using default Media Player in Fullscreen mode with 150nits brightness and default volume level), or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration, software, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time, ambient temperature and use. Refer to [Microsoft® link](https://support.microsoft.com/en-au/windows/change-the-power-mode-for-your-windows-pc-c2aff038-22c9-f46d-5ca0-78696fdf2de8) for more information about the Windows® Performance power slider.

## Power Adapter[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Power Adapter**[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 65W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
* 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
* 65W USB-C® nano GaN (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
* 65W USB-C® nano GaN (3-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
* 65W USB-C® slim GaN (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
* 65W USB-C® slim GaN (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
* No power adapter[2]

* * *

Notes:

[1]AC adapter offerings depend on the country.
[2]No power adapter is for special bid only.

## Design[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Display[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Display**[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Size Resolution Touch Type Brightness Surface Aspect Ratio Contrast Ratio Color Gamut Refresh Rate Viewing Angle (L/R/U/D)Key Features
14"WUXGA (1920x1200)None IPS[2]400nits Anti-glare 16:10 1000:1 45% NTSC 60Hz 89° / 89° / 89° / 89°85.73% screen to body ratio, 3M™ DBEF5
14"WUXGA (1920x1200)On-cell touch IPS[3]400nits Anti-glare 16:10 1000:1 45% NTSC 60Hz 89° / 89° / 89° / 89°Eyesafe® Certified 2.0, 85.73% screen to body ratio, 3M™ DBEF5
14"WUXGA (1920x1200)None IPS[4]500nits Anti-glare 16:10 1000:1 100% sRGB 60Hz 85° / 85° / 85° / 85°Low power, Eyesafe® Certified 2.0, 85.73% screen to body ratio
14"WUXGA (1920x1200)On-cell touch IPS[5]500nits Anti-glare 16:10 1500:1 100% sRGB 60Hz 89° / 89° / 89° / 89°ThinkPad® Privacy Guard, 85.73% screen to body ratio
14"2.8K (2880x1800)[6]Add On Film Touch OLED 500nits Anti-glare, Anti-reflection, anti-smudge 16:10 100,000:1 100% DCI-P3 120Hz VRR 85° / 85° / 85° / 85°DisplayHDR™ True Black 500, Dolby Vision®, Eyesafe® Certified 2.0, 85.73% screen to body ratio

### Touchscreen**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Add-on Film Touch, supports 10-point touch
* On-cell multi-touch, supports 10-point touch
* Non-touch

* * *

Notes:

[1]3M™ DBEF5 (Dual Brightness Enhancement Film) improves the experience with higher brightness and lower energy.
[2], [3], [4], [5]IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.
[6]2.8K display is only available for the models with U or H series processor.

## Input Device[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Pen[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

No support

### Keyboard[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

6-row, spill-resistant, multimedia Fn keys, Copilot key

### Keyboard Backlight[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* LED backlight
* Non-backlight

### UltraNav™[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu Glass-like Mylar® surface multi-touch 3-button Trackpad, 61 x 115 mm (2.40 x 4.53 inches)

## Mechanical[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Dimensions (WxDxH)[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Models Dimensions
Non-WWAN models 315.9 x 223.7 x 10.9/16.13 (front/rear), 21.8 (maximum) mm; 12.44 x 8.81 x 0.43/0.64 (front/rear), 0.86 (maximum) inches
WWAN support models 315.9 x 223.7 x 10.9/16.13 (front/rear), 21.95 (maximum) mm; 12.44 x 8.81 x 0.43/0.64 (front/rear), 0.86 (maximum) inches

### Weight[2][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Models Weight
Models with grey cover and 52.5Wh battery Starting at 1.59 kg (3.51 lbs)
Models with black cover and 57Wh battery Starting at 1.38 kg (3.05 lbs)
Models with grey cover and 57Wh battery Starting at 1.51 kg (3.35 lbs)
Models with black cover and 52.5Wh battery Starting at 1.46 kg (3.22 lbs)

### Case Color**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Black
* Grey

### Case Material**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Models with black cover: PC + 20% CF (top), PC + 20% CF (bottom)
* Models with grey cover: aluminium (top), PC + 20% CF (bottom)

* * *

Notes:

[1]The system dimensions may vary depending on configurations.
[2]The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

## Connectivity[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Network[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### WLAN + Bluetooth®**[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3[2]
* Intel® Wi-Fi® 7 BE201, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4[3]

### WWAN**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Wireless WAN upgradable to 4G (with antenna ready)
* Wireless WAN upgradable to 5G (with antenna ready)
* Quectel EM061K-GL, 4G LTE CAT6, M.2 card, with embedded eSIM functionality
* Quectel EM160R-GL, 4G LTE CAT16, M.2 card, with embedded eSIM functionality
* Quectel RM520N-GL, 5G Sub-6 GHz, M.2 card, with embedded eSIM functionality
* No support

### SIM Card[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* KDDI eSIM Program (Japan)[4]
* No physical SIM card inbox

### Ethernet**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Gigabit Ethernet, Intel® Ethernet Connection I219-LM (vPro® models), 1x RJ-45, supports Wake-on-LAN
* Gigabit Ethernet, Intel® Ethernet Connection I219-V (non-vPro® models), 1x RJ-45, supports Wake-on-LAN

### NFC[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Near Field Communication
* No support

* * *

Notes:

[1]Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.
[2]Wi-Fi® 6E operation is subject to the regulation rules in each country.
[3]Wi-Fi® 7 operation is subject to the regulation rules in each country.
[4]KDDI eSIM Program is for special bid only.

## Ports[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Standard Ports[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
* 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
* 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
* 1x HDMI® 2.1, up to 4K/60Hz
* 1x Headphone / microphone combo jack (3.5mm)
* 1x Ethernet (RJ-45)

### Optional Ports***[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 1x Smart card reader
* 1x Nano-SIM card slot (WWAN support models)

* * *

Notes:

[1]The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.

## Docking[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Security & Privacy[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Security[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Security Chip[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Discrete TPM 2.0, TCG certified, FIPS 140-3 certified

### Physical Locks[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Kensington® Nano Security Slot™, 2.5 x 6 mm

### Smart Card Reader[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Smart card reader, supports ISO 7816 and EMV
* No smart card reader

### Fingerprint Reader[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Touch style fingerprint reader integrated in power button, match-on-chip
* No fingerprint reader

### BIOS Security[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* NVMe® password
* Power-on password
* Supervisor password
* System management password
* Certificate-based BIOS authentication
* FIDO (Fast Identity Online) authentication
* Self-healing BIOS

### Other Security[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Camera privacy shutter (camera models)
* (Optional) Ultrasonic Human Presence Detection
* (Optional) IR camera for Windows® Hello (facial recognition)
* Privacy Guard with Privacy Alert (models with ThinkPad® Privacy Guard display)

## Manageability[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## System Management[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### System Management[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Intel® vPro® Enterprise[1]
* Non-vPro®

* * *

Notes:

[1]Intel® vPro® offers a superset of DASH’s defined capabilities.

## Service[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Warranty[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Base Warranty**[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* 1-year courier or carry-in service
* 1-year courier or carry-in with 2-year system board service (Korea only)
* 1-year limited onsite service
* 3-year (1-yr battery) courier or carry-in service
* 3-year (1-yr battery) limited onsite service
* No base warranty[1]

* * *

Notes:

[1]No base warranty is for special bid only.

## Accessories[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Bundled Accessories[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Bundled Accessories***[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Lenovo® HDMI® to VGA Monitor Adapter
* Lenovo® USB-C® to DisplayPort™ Adapter
* Lenovo® USB-C® to VGA Adapter
* None

* * *

Notes:

## Operating Requirements[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Operating Environment[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Temperature[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Operating: 5°C (41°F) to 35°C (95°F)
* Storage and transportation in original shipping package: -20°C (-4°F ) to 60°C (140°F)
* Storage without package: 5°C (41°F) to 43°C (109°F)

### Relative Humidity[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
* Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)

### Altitude[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

Maximum altitude (without pressurization): 3048 m (10,000 ft)

* * *

Notes:

[1]When you charge the battery, its temperature must be no lower than 10°C (50°F).

## Environmental[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Sustainability[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Material[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

30% PCC recycled plastic on black top cover 50% recycled aluminium on grey top cover 48% PCC recycled plastic used in display panel frame 90% recycled magnesium on keyboard frame 48% PCC recycled plastic on bottom cover of WWAN models 30% PCC recycled plastic on bottom cover of non-WWAN models 90% PCC recycled plastic used in speaker enclosure 90% PCC recycled plastic used in the battery frame 85% PCC recycled plastic for backlit keycaps 75% PCC recycled plastic for non-backlit keycaps 65% PCC recycled plastic for keycap frame 90% PCC recycled plastic used in 65W adapters 100% Plastic Free One Lenovo® Packaging

* * *

Notes:

[1]PCC: Post Consumer Content, recycled materials from customers.

## Certifications[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

## Green Certifications[1][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Green Certifications[2][](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

* ENERGY STAR® 9.0
* EPEAT™ Gold Registered[3]
* ErP Lot 6/26
* RoHS compliant
* TCO Certified 10.0

* * *

Notes:

[1]The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit [https://compliance.lenovo.com](https://compliance.lenovo.com/).
[2]EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit [epeat.net](https://www.epeat.net/) and [energystar.gov](https://www.energystar.gov/) for more information.
[3]EPEAT™ is registered where applicable, please visit [epeat.net](https://www.epeat.net/) for registration status by country.

## Other Certifications[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

### Mil-Spec Test[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

MIL-STD-810H military test passed

### Other Certifications[](https://psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T14_Gen_6_Intel/ThinkPad_T14_Gen_6_Intel_Spec.html)

(Optional) Eyesafe® Certified 2.0

* Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
* Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
* Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
* The specifications on this page may not be available in all regions, and may be changed or updated without notice.
